| ||||| TKD ALL PRODUCTS ||||| |
 |
| For PROFESSIONAL CONSOLE EQUIPMENTS |
For VARIOUS PRO AUDIO EQUIPMENTS |
GENERAL ELECTRONIC COMPONENTS |
 |
 |
 |
| For PROFESSIONAL CONSOLE EQUIPMENTS |
| [ MOTORISED FADER ] |
| Product name | Photo (Click for details) | Direction | Element | Travel | Output law | Resistance | Details |

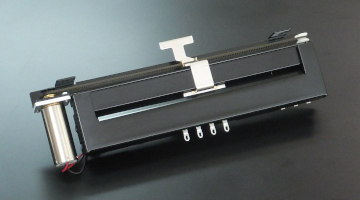

| in planning (2025 1H) MF-915 Series (2-circuits model) |
Horizontal style |
Conductive plastic |
100mm | Linear + Linear Linear + Audio Linear + AP-taper |
10kohm 5kohm |
||
| in planning (2025 1H) MF-915 Series (Single-circuit model) |
 |
Horizontal style |
Conductive plastic |
100mm | Linear Long-Linear |
10kohm 5kohm |
 |
| in planning (2025 1H) LMF-913 Series |
Horizontal style |
Direct print resistor |

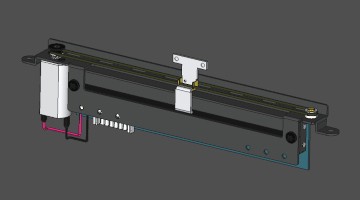

100mm | D-Linear | 10kohm 5kohm |
||
| plan X800 | Horizontal style |
100mm | 10kohm 5kohm |
||||
| plan X500 | Horizontal style |
100mm | 10kohm 5kohm |
||||

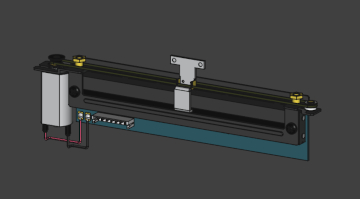

| in planning (2025 1H) LMH6-100 Series |
Horizontal style |
Direct print resistor |
100mm | D-Linear | 10kohm 5kohm |
|
|
| LMH5 Series |
 |
Horizontal style |
Direct print resistor |
100mm 60mm |
Linear | 10kohm 5kohm |
|
| LMA5 Series |
 |
Vertical style |
Direct print resistor |
100mm 60mm |
Linear | 10kohm 5kohm |
|

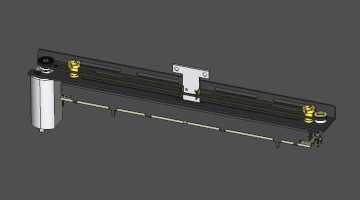

| MLA Series |
 |
Vertical style |
Direct print resistor |
100mm 60mm |
Linear | 10kohm 5kohm |
|
| MF-9100 Series |
 |
Horizontal style |
Conductive plastic |
100mm | Linear Linear + Audio Linear + AP-taper |
10kohm 5kohm |
|
| NRND MF-914 Series |
|
Horizontal style |
Conductive plastic |
100mm | Linear | 10kohm 5kohm |
|
| *** All motorised faders include a touch sense track. |
| [ MANUAL FADER ] |
| Product name | Photo (Click for details) | Direction | Element | Travel | Output law | Resistance | Details |
| CPA-9100 Series |
 |
Horizontal style |
Conductive plastic |
100mm | Linear Linear x2 Audio Audio x2 AP-taper AP-taper x2 |
10kohm 5kohm |
|
| CPA-9200 Series |
|
Horizontal style |
Conductive plastic |
104mm | Linear Linear x2 Audio Audio x2 |
10kohm 5kohm |
|
| CPA-TE-9100 Series |
|
Horizontal style |
Conductive plastic |
100mm | Linear + Touch | 10kohm 5kohm |
|
| plan X800 | Horizontal style |
100mm | 10kohm 5kohm |
||||
| plan X500 | Horizontal style |
100mm | 10kohm 5kohm |
||||

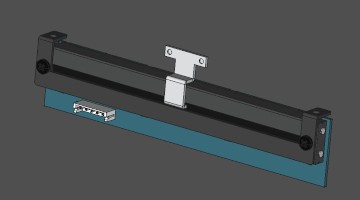

| LSVH Series |
 |
Horizontal style |
Direct print resistor |
100mm 60mm |
Linear Linear x2 Audio Audio x2 |
10kohm 5kohm |
|
| LSVA Series |
 |
Vertical style |
Direct print resistor |
100mm 60mm 45mm |
Linear Linear x2 Audio Audio x2 |
10kohm 5kohm |
|
| LCA Series |
 |
Vertical style |
Direct print resistor |
100mm 60mm 45mm |
15A Linear 15C D(10A) |
5kohm 10kohm 50kohm 100kohm |
 |
| in planning AR40 Series |
Horizontal style |
Direct print resistor |
40 degees | Linear | 10kohm 5kohm |
||
| NRND CPA-7000 Series |
 |
Horizontal style |
Conductive plastic |
100mm 104mm |
Linear Linear x2 Audio Audio x2 |
10kohm 5kohm |
|

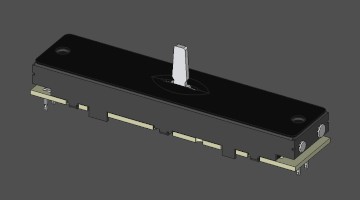

| [ CROSS FADER for DJ MIXER ] |
| Product name | Photo (Click for details) | Direction | Element | Travel | Output law | Resistance | Details |
| CFX-45L |
 |
Horizontal style |
Conductive plastic |
45mm | Linear x2 | 50kohm 10kohm |
|
| 45LT-R2 |
 |
Horizontal style |
Direct print resistor |
44mm | Linear | 50kohm 10kohm |
|
| [ KNOB for FADER ] |
| Product name | Photo (Click for details) | Standard Type color | Conductive type color |
Size | Details |
| CP-1 |
 |
Red, Black, White, Ivory, Orange, Yellow, Green, Blue, Sky blue, Grey, Brown |
Gold, Silver, Bronze |
16W x 9H x 25D |
 |
| CP-2 |
 |
Red, Black, White, Ivory, Orange, Yellow, Green, Blue, Sky blue, Grey, Brown |
Gold, Silver, Bronze |
11W x 9H x 25D |
|
| CP-1 color set CP-2 color set |
 |
Red, Black, White, Ivory, Orange, Yellow, Green, Blue, Sky blue, Grey, Brown |
Silver | 16W x 9H x 25D 11W x 9H x 25D |
|
| *** Exclusive use of the "TKD PROFADER". |
| [ DUST COVER for FADER ] |
| Product name | Photo (Click for details) | Size | Material | How to install | Details |
| DUSTCOVER100MM DUSTCOVER60MM DUSTCOVER45MM |
 |
16W x 127D (100mm) 16W x 87D (60mm) 16W x 72D (45mm) |
Felt fabric | Double-sided tape (Product already attached). |
|
| For VARIOUS AUDIO EQUIPMENTS |
| [ STEPPED VARIABLE ATTENUATOR ] |
| Product name | Photo (Click for details) | Size | Element | Circuit - Resistance or Impedance | Details |
| P65C P65CS |
 |
dia.45mm x **mm (Body) |
Au-plated contact |
Potentiometer (Unbalanced) |
|
| Type-D Series |
 |
dia.36mm x **mm (Body) |
Au-plated contact |
Potentiometer (Unbalanced) Bridged-T (Unbalanced) Bridged-H (Balanced) Bridged-HN (Balanced) |
|
| Type-E Series |
 |
dia.30mm x **mm (Body) |
Au-plated contact |
Potentiometer (Unbalanced) Bridged-T (Unbalanced) Bridged-H (Balanced) |
|
| Type-HR23 |
 |
23.5mm x 23.5mm x **mm (Body) |
Au-plated contact |
Potentiometer (Unbalanced) |
|
| Type-P2510 Type-P2520 |
 |
25mm x 25mm x **mm (Body) |
Au-plated contact |
Potentiometer (Unbalanced) |
|
| Type-P2550 Type-P2560 |
 |
25mm x 25mm x 19.5mm (Body) |
Au-plated contact |
Potentiometer (Unbalanced) |
|
| FA-9100 Series (Slide attenuator) |
 |
133mm x 33.4mm x 15mm (Body) |
Au-plated contact |
Potentiometer (Unbalanced) 10kohm |
|
| [ ROTARY SWITCH ] |
| Product name | Photo (Click for details) | Size | Element | Step angle | Contact type | Details |
| 2R6-A 2R6-AM 4R6-A 4R6-AM |
 |
45mm x 45mm x **mm (Body) |
Silver alloy contact |
30 degrees | Non-shorting Shorting |
 |
| plan RS25 | 25mm x 25mm x **mm (Body) |
Au-plated contact |
30 degrees | Non-shorting Shorting HV-contact |
||
| RR16G Series |
 |
20mm x 22.5mm x **mm (Body) |
Au-plated contact |
15 degrees 30 degrees |
Shorting Non-shorting |
|
| [ ASSEMBLY ATTENUATOR KIT ] |
| Product name | Photo (Click for details) | Assembly contents | Circuit type | Resistance | Size | Details |
| DIY ATTENUATOR |
 |
Resistor mounting | Stepped variable attenuator |
10kohm 50kohm 100kohm |
dia.36 x **mm |
|
| [ FADING UNIT BOX ] |
| Product name | Photo | Attenuation | Impedance | Connectors | Details |
| FUA-100 Built-in FA-9100  |
 |
0, 1, 2, 3, ...(1dB step)..., 40, 42, 44, 46, 48, 50, 55, 60, 65, 70, cut off * step variable * Please see FA-9100 spcifications. |
10kohm | dia.3.5 stereo jack |
|
| VCB-25 Built-in CP2500 |
 |
* Please see CP2500 (Ladder circuit model) spcifications. | 10kohm | dia.3.5 stereo jack |
|
| GENERAL ELECTRONIC COMPONENTS |
| [ VARIABLE CONTROLLER (POTENTIOMETER, ATTENUATOR) ] |
| Product name | Photo (Click for details) | Size (Body) | Element | Angle | Circuit - Resistance | Details |

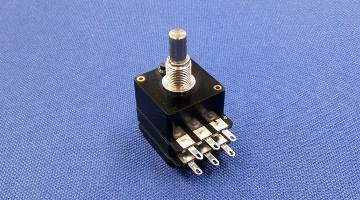

| CP2500 Series |
 |
25mm x 25mm x **mm |
Conductive plastic |
300 degrees operating |
Potentiometer circuit [A, B, C curve] 5kohm, 10kohm, 50kohm, 100kohm |
|
| CP2500 Series |
|
25mm x 25mm x **mm |
Conductive plastic |
300 degrees operating |
Ladder [Audio curve] 5kohm, 10kohm, 50kohm, 100kohm |
|
| CP2511 Series |
|
25mm x 25mm x **mm |
Conductive plastic |
315 degrees operating |
Ladder [Audio curve] 5kohm, 10kohm, 50kohm, 100kohm |
|
| CP600 Series |
 |
16mm x 16mm x **mm |
Conductive plastic |
300 degrees operating |
Potentiometer circuit [A, B, C curve] 5kohm, 10kohm, 50kohm, 100kohm |
|
| CP600 Series |
|
16mm x 16mm x **mm |
Conductive plastic |
300 degrees operating |
Ladder [Audio curve] 5kohm, 10kohm, 50kohm, 100kohm |
|
| [ T-BAR CONTROLLER ] |
| Product name | Photo (Click for details) | Direction | Element | Angle | Output law | Resistance | Details |
| plan VP-1002D Series | |||||||
| VP-1002A Series |
 |
Horizontal style 50mm T-bar |
Conductive plastic |
60 degrees operating |
Linear | 10kohm 5kohm |
|
| VP-502A Series |
 |
Horizontal style 20mm T-bar |
Conductive plastic |
60 degrees operating |
Linear | 10kohm 5kohm |
|
| *** Slide switch (at both ends ON) is optional. |
| [ ENDLESS WHEEL ] |
| Product name | Photo (Click for details) | Control mechanism | Output specification | Operating range | Details |
| in planning TA-2600E-360 |
 |
Drum-type (Φ72) | 2 phases square wave | 360 degrees |
|
| plan TA-2700E | Drum-type (Φ**) | 2 phases square wave | 360 degrees | ||
| plan TA-2600D |
| [ AXIAL TYPE RESISTOR ] |
| Product name | Photo (Click for details) | Features | Insulation | Tolerance | Absolute T.C.R. | Power rating | Details |
| RN Series |
 |
Precision metal Film |
Molding | ±0.1% ±0.25% ±0.5% ±1% |
±5 ppm/degreesC ±10 ppm/degreesC ±25 ppm/degreesC ±50 ppm/degreesC |
0.1W 0.125W 0.25W 0.5W 0.75W 1.5W |
|
| SRN Series |
 |
Super precision metal Film |
Molding | ±0.01% ±0.0125% ±0.05% |
±5 ppm/degreesC ±10 ppm/degreesC |
0.1W 0.125W 0.25W 0.5W |
|
| RN14 Series |
 |
Precision metal Film |
Coating | ±0.1% ±0.25% ±0.5% ±1% |
±5 ppm/degreesC ±10 ppm/degreesC ±25 ppm/degreesC ±50 ppm/degreesC |
0.25W 0.5W |
|
| CM Series |
 |
Metal film | Coating | ±0.5% ±1% |
±50 ppm/degreesC ±100 ppm/degreesC |
0.125W 0.25W 0.5W 1W 2W |
|
| [ ASSEMBLY DECADE BOX KIT ] |
| Product name | Photo (Click for details) | Assembly contents | Circuit type | Resistance | Size | Details |
| DIY DECADE BOX |
 |
Resistor mounting Mechanical assembly |
Stepped variable resistor |
11.11kohm | 60W x 30H x 180D |
|
