| MOTORIZED CONTROL FADER |
|
MLA2 Series |
| Direct print resistor element used (Special surface treatment). Vertical style control-bar design. PCB Terminal style. All models include a touch sense track. |
| Last update: 2026.**.21. | [Specifications] | [Note] | [Dimensions] | [Model-number] | [Update list] | EU-RoHS |
| Information |
| This data is under development. This product is compatible with MLA-Series. This model features a TKD original fader mechanism, replacing the Chinese-made fader mechanism used in the MLA motor fader. |
| Electrical specifications (initial value) |
MLA2 Series | |
| Products | MLA2-1100-B*-* | MLA2-6100-B*-* |
| Number of circuits Type of output law |
1 Law1: Linear taper |
|
| Circuit method (Output law) | Potentiometer circuit | |
| Total resistance (1-3) | 10kohm, 5kohm | |
| Total resistance tolerance | ±20% | |
| Absolute linearity | ±5% (The travel is divided into 10 sections and 11 positions are measured.) | |
| Residual voltage (1-2), (2-3) | 20mV or less | |
| Residual resistance (1-2), (2-3) | 50ohm or less (Reference values) | |
| Touch sense track contact resistance | 30ohm or less (Between terminal T and Control-bar.) | |
| Voltage proof | 1 Min. at AC500V | |
| Insulation resistance | 50Mohm or more at DC100V | |
| Max rating | 0.2W | |
| Maximum input voltage | DC30V or less | |
| Sliding noise level | 47mV or less (by JIS C 6443) | |
| Sliding life | 100,000 Cycles Min. (18cycles/min, Sliding noise level: Less than 100mV) | |
| Drive motor data |
DC8V Iron cored motor : Input voltage: DC5V - 11.5V
(Nominal DC8V), Stall current: 0.5A or
less [FF-050SB-09250 : MABUCHI MOTOR Co., Ltd.] |
|
| Mechanical specifications (initial value) |
MLA2-1100 Series | MLA2-6100 Series |
| Travel (Stroke) length | 100mm ±0.5mm | 60mm ±0.5mm |
| Operating force | 0.1 to 0.3N | |
| Strength Nut-Attached | 100Ncm | |
| Attached parts | M3 screw (Length: Panel thickness + 3~5mm) | |
| Stopper strength | 30N | |
| Push-pull strength | 30N | |
| Alignment to the center | ±0.5mm (State not to pressure control-bar, Measurement position: Mounting surface) | |
| General specifications | MLA2 Series |
| Temperature range | -10 to +50 degrees C (Operating), -15 to +60 degrees C (Storage) |
| Relative humidity | 80%RH (No condensation) |
| Note |
| * Solder heat resistance: 350deg C max, 5sec max, 2 times. (Manual
soldering only) * Please take care during soldering that the smoke from the solder does not flow inside a fader. * If the flux sticks to a resistor board, it may cause a trouble with the fader. |
| * Move to one end in Control-bar on the occasion of knob wearing, and can break into it slowly. |
| * It is highly recommended that the fault tolerant system is to be set up in the big situation like the live broadcast. |
| *
This product is designed on the assumption of the horizontal use. * The enough operational testing is highly recommended for the slant or the vertical use to prevent the unexpected operation. |
| * Replacing it from other brands tests it enough, and please consider. |
|
The load resistance (R) on the fader output side should be
much higher than 20 times the total resistance value. During fader operation, due to noise generated from friction between resistive elements and contacts and noise generated from vibration of the power mechanism, there are many factors affecting the output signal quality. To reduce these effects, use decoupling capacitors (C). (Use a capacitor value that matches the control circuit to which it is connected.)
|
| * It is recommended that motor leads be shortened and twisted. Consider not to interfere with other motor leads. |
| * Color may vary slightly due to body material. * Due to the way the body is processed, there may be some rubbing on the folded parts. |
| * Please do not strike the fader carriage hard against either end of
the fader. * Please do not stop the fader keeping the fader carriage pushed hard against either end of the fader. |

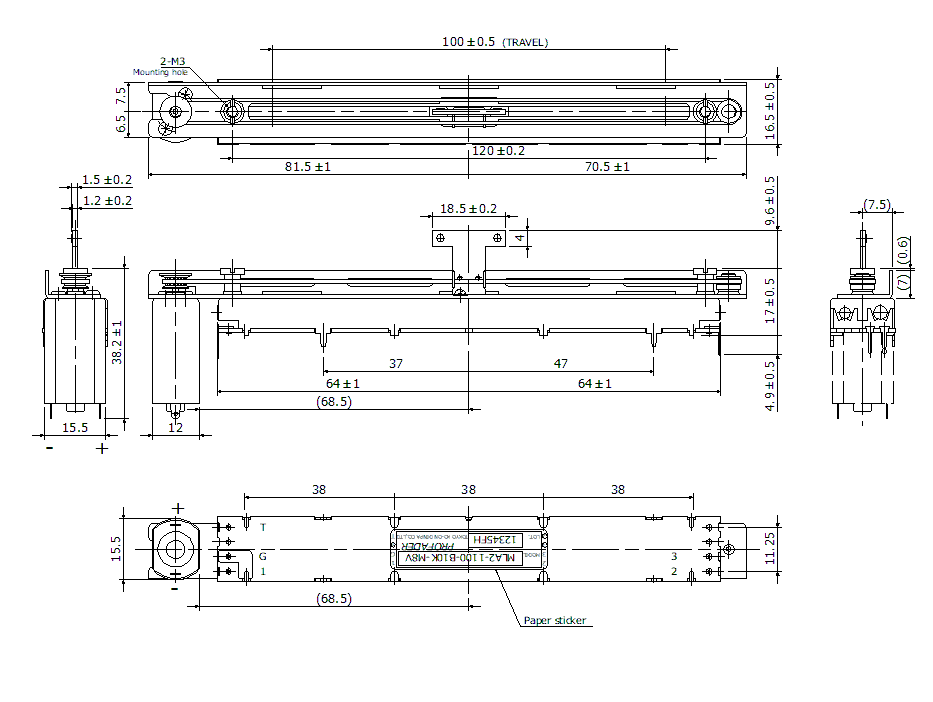

| Dimensions - MLA2-1100-B**-M8V | ||
|
|
|

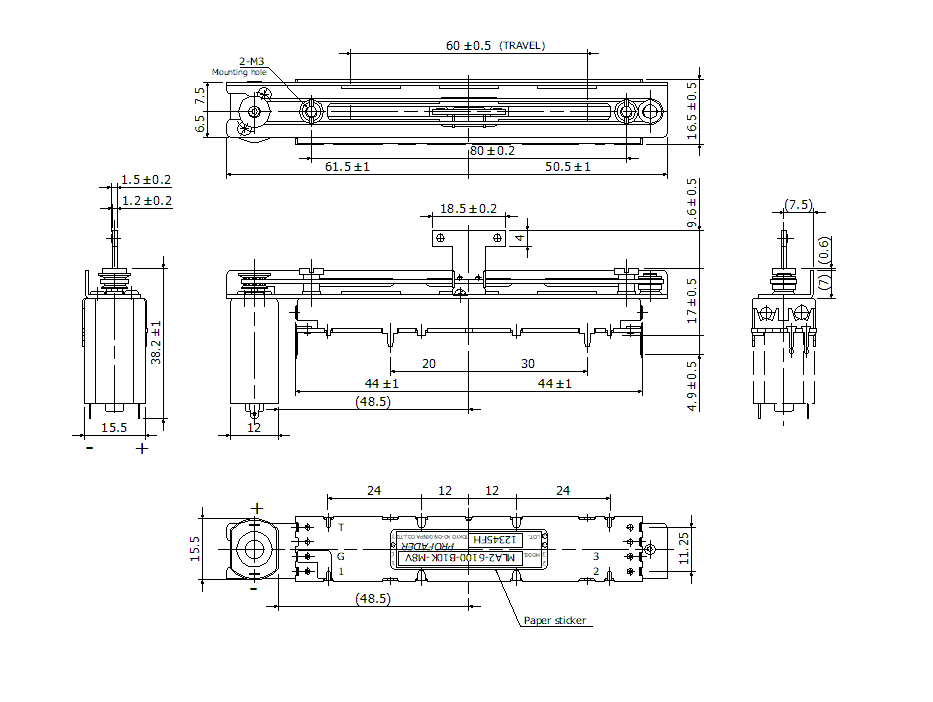

| Dimensions - MLA2-6100-B**-M8V | ||
|
|
|
| Dimensions - Panel cut out |
|
| Dimensions - P.C.Board Mounting hole detail (Viewed from mounting side) |
|
| Dimensions - Terminations |
|
| Model number | ||||||||||||
|
| *1 |
Product number (travel) |
MLA2-1100 : 100mm MLA2-6100 : 60mm |
| *2 | Output law | B : Linear taper + Touch sense track |
| *3 |
Total resistance |
10K : 10kohm 5K : 5kohm |
| *4 | DC Motor type | M8V : DC8V Iron cored |
| Products No. ( X: Standard model) |
Travel | Output law1 |
Resistance law1 |
Dust cover | Touch sense track |
Motor | Mounting Screws |
Control-bar length (Bracket height) |
|
| MLA2-1100-B10K-M8V | X | 100mm | Linear | 10kohm | Without | With | DC8V iron cored |
M3 | 9.6mm (5.6mm) |
| MLA2-1100-B5K-M8V | 100mm | Linear | 5kohm | Without | With | DC8V iron cored |
M3 | 9.6mm (5.6mm) | |
| MLA2-6100-B10K-M8V | X | 60mm | Linear | 10kohm | Without | With | DC8V iron cored |
M3 | 9.6mm (5.6mm) |
| MLA2-6100-B5K-M8V | 60mm | Linear | 5kohm | Without | With | DC8V iron cored |
M3 | 9.6mm (5.6mm) | |
| Update list | |
| 2026.03.21. | First edition |
