     STEP VARIABLE ATTENUATOR

TYPE-E Series
Au-plated contact materials (Low contact resistance).
Φ30mm body.
3 types attenuation circuits.
Used a highly precise resistor.
Rear terminal.

Last update: 2024.02.20. [Electrical-spec] [Mechanical-spec] [Note] [Dimensions] [Model-number] EU-RoHS


Information


Electrical specifications TYPE-E Series
Attenuation

BTS-50dB 0, 2, 4, 6, 8, 10, 12, 14, 16, 18, 20, 22, 24, 26, 28, 30, 32, 34, 37, 42, 50, cut-off
OtherPlease see product list.
Attenuation  accuracy



Attenuation step Error in step Max. Attenuation
0.5dB or less.Less than ±0.05 Less than ±0.1
1 - 2dB Less than ±0.1 Less than ±0.2
3dB or more Less than ±0.2 Less than ±0.4
Accuracy of impedance ±2% (Impedance 600ohm), ±5% (Other impedance)
Cut off [15kHz]



Cut-off Max. Attenuation Impedance
80dB Min. 50dB 600ohm
70dB Min. 50dB 7kohm
58dB Min. 20dB 7kohm
Voltage proof 1 Min. at AC500V
Insulation resistance 50Mohm or more at DC500V
Input level Max. 0.3W
Rotational life 30,000 Cycles Min. (18cycles/min, Insertion loss: 1dB or less)
* The output side in the potentiometer circuit load should be used with high impedance (20 times or more than the total resistance value).

Mechanical specifications TYPE-E Series
Operating angle [ (Step angle) x (Number of steps) ] degrees ±2 degrees
Strength Nut-Attached 100Ncm
Attached parts M3 screw (Length: Panel thickness + 3 to 5mm) or Hexagonal nut (M9)
Stopper strength 50Ncm
Push-pull strength 50N


General specifications TYPE-E Series
Temperature range -10 to +60 degrees C (Operating), -15 to +65 degrees C (Storage)
Relative humidity 80%RH (No condensation)

Note
* Solder heat resistance: 350deg C max, 5sec max, 2 times. (Manual soldering only)
   The solder please use the thing of the same composition. (Solder for wire lapping sticks to a terminal.)
   Use solder: SN100C (Sn-0.7Cu-0.05Ni-Ge) NIHON SUPERIOR CO.,LTD.
* Special order of the shaft length is possible. Please contact us for details.
* It is highly recommended that the fault tolerant system is to be set up in the big situation like the live broadcast.
* Replacing it from other brands tests it enough, and please consider.
* Cannot use this product for the signal line using phantom 48V.
* This product is an attenuator of the types to change resistance.
   Therefore, a switching noise may occur.

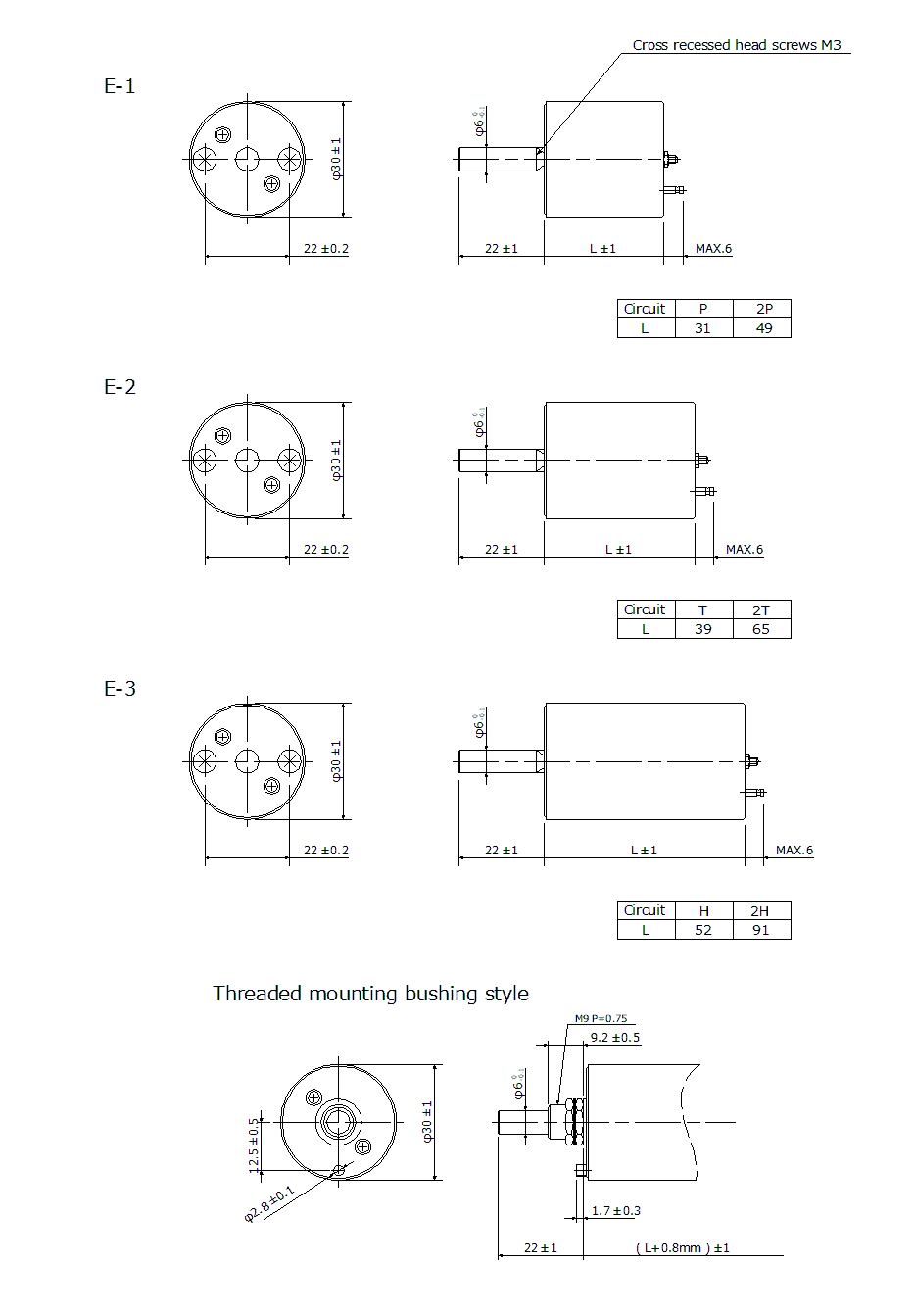

Dimensions - TYPE-E


Dimensions - Terminations

Model number
2 P 50 E S - 10Kohm - TM
*1 *2 *3 *4 *5   *6   *7


*1
 		 Number of circuits
 		 Blank : Single circuit
2         : Dual circuits specified
*2


 Circuit
(Please see dimensions-terminal.)

 P    : Potentiometer (Unbalanced circuit)
T    : Bridged-T (Unbalanced circuit)
H    : Bridged-H (Balanced circuit)
*3 Max attenuation
*4 Product type E   : TYPE-E Series
*5
  		 Stepper option
  		 Blank : Non-stepper type (Without clicks)
S        : Stepper type (With clicks)
*6 Impedance
*7
  		 Mounting style
  		 Blank : Standard (Fastened at 2 points with screws)
TM      : Threaded mounting bushing


Standard lineups
Order number Standard products with a simple number.
Circuit












 		POTENTIOMETER
  Unbalanced circuit
BRIDGED-T
  Insertion loss: 0dB
  Constant impedance
  Unbalanced circuit
BRIDGED-H
  Insertion loss: 0dB
  Constant impedance
  Balanced circuit
Max. AttenuationMaximum attenuation without Cut off point.
Attenuation types
 		BTS-50dB: Look at specifications.
Ex) 1dBx10: 0, 1, ...(1dB step)..., 9, 10dB
ImpedanceTotal resistance (Potentiometer), Input / Output Impedance (other circuits)
Frequency RangeOperating frequency range.
1step angle
 		The angle to the next decrement point.
Total rotational angle = (Number of steps) x (1step angle)
Total Number of steps
 		Determined by the Circuit and Attenuation types.
Total number of contacts = Total number of steps + 1
Stepper optionWith: With Clicks
Cut off
 		Cut off attenuation.
Please see the cut-off attenuation specification.
Direction of attenuation
 		CCW: Attenuation decreases with the clockwise (Up to Signal level).
CW: Attenuation increases with the clockwise (Down to Signal level).
DimensionPlease see the Dimension and Dimension number.

Order No.
Model number		 Circuit Max. Attenuation Attenuation
types		 Impedance
[ohm]		 Frequency
range [Hz]		 1step
angle		 Total steps Stepper
option		 Cut-off Direction of
attenuation		 Dim.
E-P001
P50ES-1kohm		 P 50dB BTS-50dB 1k DC - 100k 15degs 21 With With CCW E-1
E-P002
P50ES-50kohm		 P 50dB BTS-50dB 50k DC - 50k 15degs 21 With With CCW E-1
E-P003
P50ES-250kohm		 P 50dB BTS-50dB 250k DC - 15k 15degs 21 With With CCW E-1
E-P004
P50ES-500kohm		 P 50dB BTS-50dB 500k DC - 15k 15degs 21 With With CCW E-1
E-P005
2P50ES-50kohm		 P x2 50dB BTS-50dB 50k DC - 50k 15degs 21 With With CCW E-1

E-T001
T10ES-600ohm		 T 10dB 1dB x10 600 DC - 500k 15degs 10 With - CCW E-2
E-T002
T10ES-600ohm		 T 10dB 1dB x10 600 DC - 200k 15degs 11 With With CCW E-2
E-T003
T20ES-600ohm		 T 20dB 1dB x20 600 DC - 200k 15degs 21 With With CCW E-2
E-T004
T20E-600ohm		 T 20dB 1dB x20 600 DC - 200k 15degs 21 - With CCW E-2
E-T005
T20ES-600ohm		 T 20dB 1dB x20 600 DC - 200k 15degs 21 With With CW E-2
E-T006
T20E-600ohm		 T 20dB 1dB x20 600 DC - 200k 15degs 21 - With CW E-2
E-T007
T40ES-600ohm		 T 40dB 2dB x20 600 DC - 150k 15degs 20 With - CCW E-2
E-T008
T40E-600ohm		 T 40dB 2dB x20 600 DC - 150k 15degs 20 - - CCW E-2
E-T009
T42ES-600ohm		 T 42dB 2dB x21 600 DC - 150k 15degs 21 With - CCW E-2
E-T010
T42E-600ohm		 T 42dB 2dB x21 600 DC - 150k 15degs 21 - - CCW E-2
E-T011
T50ES-3kohm		 T 50dB BTS-50dB 3k DC - 15k 15degs 21 With With CCW E-2
E-T012
T50E-3kohm		 T 50dB BTS-50dB 3k DC - 15k 15degs 21 - With CCW E-2
E-T013
T50ES-600ohm		 T 50dB BTS-50dB 600 DC - 20k 15degs 21 With With CCW E-2
E-T014
T50E-600ohm		 T 50dB BTS-50dB 600 DC - 20k 15degs 21 - With CCW E-2
E-T015
T50ES-600ohm		 T 50dB 5dB x10 600 DC - 100k 30degs 10 With - CCW E-2
E-T016
T50ES-600ohm		 T 50dB 10dB x5 600 DC - 100k 30degs 5 With - CCW E-2
E-T017
2T50ES-600ohm		 T 50dB BTS-50dB 600 DC - 20k 15degs 21 With With CCW E-2
E-T018
2T50E-600ohm		 T 50dB BTS-50dB 600 DC - 20k 15degs 21 - With CCW E-2

E-H001
H50ES-600ohm		 H 50dB BTS-50dB 600 DC - 20k 15degs 21 With With CCW E-3
E-H002
H50E-600ohm		 H 50dB BTS-50dB 600 DC - 20k 15degs 21 - With CCW E-3


Method of ordering
1. Can estimate the standard lineup product only with the order number.
2. In the case of the specifications product which a standard lineup does not have, there are two ways of estimate methoES.

    a: Method to change a part of the standard lineup specifications

        a-1: Please inform it of the order number and specifications change point.
               Modifiable point: Cut off (With / Without), Stepper option (With / Without), Impedance, Control shaft length

        a-2: Examine production possibility with designated specifications before an estimate.

        a-3: Inform it of the model number and an estimate.

    b: Special order specifications

        b-1: Please inform it of specifications of the hope.
              (Cannot change the basic electric specifications such as input levels.)
               Modifiable point: Cut off (With / Without), Stepper option (With / Without), Impedance, Control shaft length, Circuit, Max.Attenuation,
               Attenuation type

        b-2: Examine production possibility with designated specifications before an estimate.

        b-3: Inform it of the model number and an estimate.




Update list

2024.02.20. Threaded mounting bushing style specification is added.
2022.11.15. First edition
