     MANUAL CONTROL FADER

2DSVH Series
his is the manual-operation version of the LMH5-Series with an audio circuit.
Using the linear circuit and the audio circuit simultaneously.
Direct print resistor element used (Special surface treatment).
Horizontal style control-bar design (Protection against dust).
PCB Terminal style.


Last update: 2026.05.04. [Specifications] [Note] [Dimensions] [Model-number] [Update list] EU-RoHS


Information
Please note that the terminal positions differ from those of LSVH series.

Because the frame is painted, we cannot solder the four pins extending from the frame.
Please contact us separately if you would like to have soldering done.


Electrical specifications
(initial value)		 2DSVH Series
Products 2DSVH-*****-BA* 2DSVH-11***-BAP*
Number of circuits 2 circuits (Law1 and Law2) 2 circuits (Law1 and Law2)
Type of output laws
 		 Law1:  Linear taper
Law2:  Audio taper		 Law1:  Linear taper
Law2:  AP taper
Circuit method
 		 Law1:  Potentiometer circuit
Law2:  Ladder circuit
Total resistance (1-3) 10kohm,   5kohm
Total resistance tolerance ±20%
Absolute linearity (Linear taper)
 Within ±5% of the input voltage at each position.
Residual voltage (1-2), (2-3)
(Linear taper)		 20mV or less

Residual resistance (1-2), (2-3)
(Linear taper)		 50ohm or less

Attenuation accuracy [Load: high]
(Audio taper, AP taper)		 0 - 20dB: ±3.0dB

Insertion loss
(Audio taper, AP taper)		 0.5dB or less

Cut off [15kHz]
(Audio taper, AP taper)		 95dB Min.

Voltage proof 1 Min. at AC500V
Insulation resistance 50Mohm or more at DC250V
Max rating 0.2W (Linear taper),  0.1W (Other taper)
Maximum input voltage DC30V or less
Sliding noise level 47mV or less (by JIS C 6443)
Sliding life 100,000 Cycles Min. (18cycles/min, Sliding noise level: Less than 100mV)

Mechanical specifications
(initial value) 		2DSVH-1100 Series 2DSVH-6100 Series
Travel (Stroke) length 100mm ±0.5mm 60mm ±0.5mm
Operating force
 		 0 to 0.1N (Standard)
0.1 to 0.4N (High operating force)
Strength Nut-Attached 100Ncm
Attached parts M3 screw (Length: Panel thickness + 3mm)
Stopper strength 30N
Push-pull strength 30N
Alignment to the center ±0.5mm (State not to pressure control-bar, Measurement position: Mounting surface)

General specifications 2DSVH Series
Temperature range -10 to +70 degrees C (Operating), -15 to +75 degrees C (Storage)
Relative humidity 90%RH (No condensation)


Please check before use.
* Solder heat resistance: 350deg C max, 5sec max, 2 times. (Manual soldering only)
* Please take care during soldering that the smoke from the solder does not flow inside a fader.
* If the flux sticks to a resistor board, it may cause a trouble with the fader.
* Move to one end in Control-bar on the occasion of knob wearing, and can break into it slowly.
* It is highly recommended that the fault tolerant system is to be set up in the big situation like the live broadcast.
* This product is designed on the assumption of the horizontal use.
* The enough operational testing is highly recommended for the slant or the vertical use to prevent the unexpected operation.
* Only high operating force type with CP-1 or CP2 is applicable for the vertical use.
* Replacing it from other brands tests it enough, and please consider.
* Caution in Ladder circuit(Audio and AP taper) use.

   Important points in using audio curve and log curve of TKD faders >>
* Color may vary slightly due to body material.
* Due to the way the body is processed, there may be some rubbing on the folded parts.
* Please do not strike the fader carriage hard against either end of the fader.

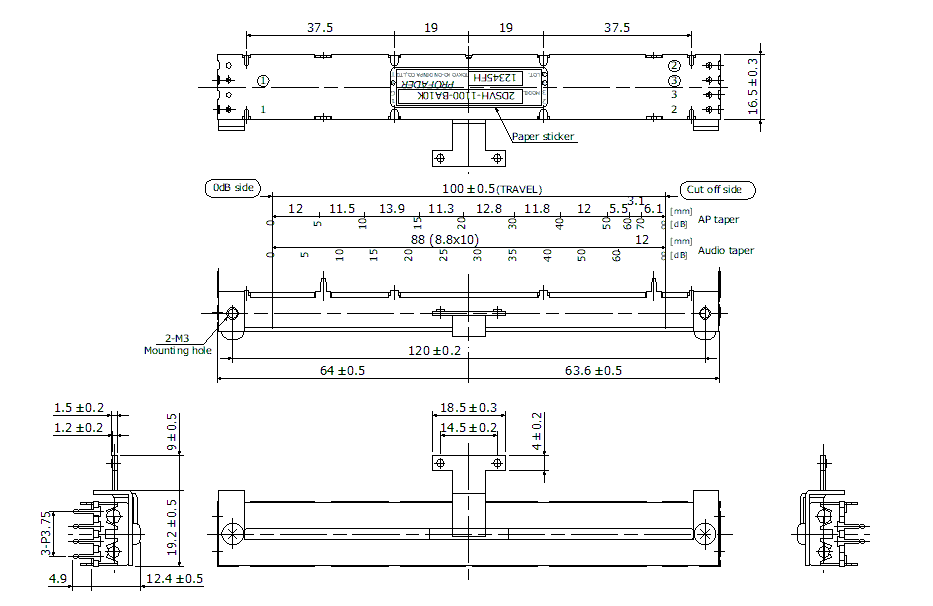

Outline -Travel 100mm


2DSVH-110X

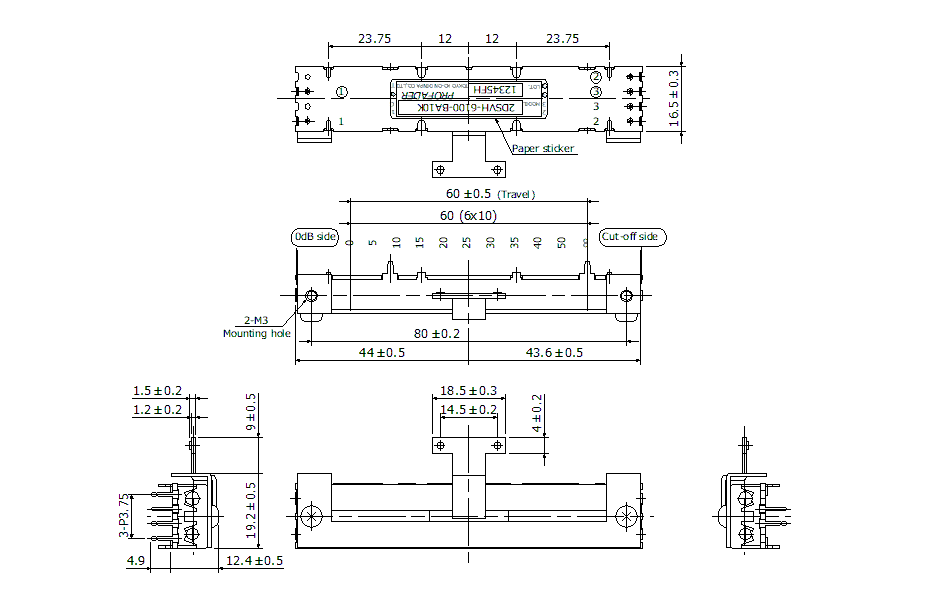

Outline -Travel 60mm


2DSVH-610X

Panel cut out

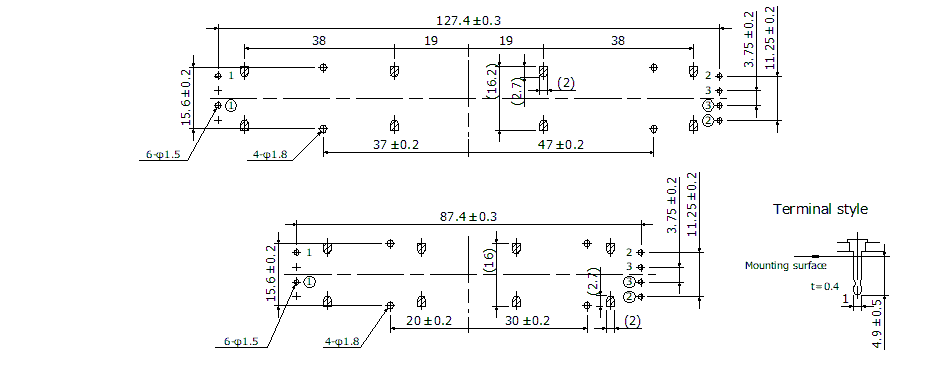

P.C.Board Mounting hole detail (Viewed from mounting side)

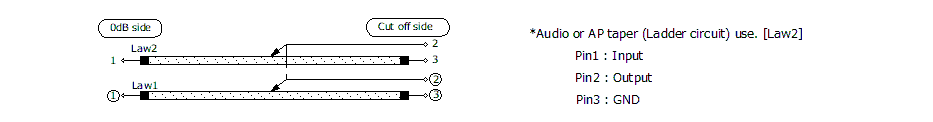

Terminations

Taper infomations
Dimension drawings for Audio-taper and AP-taper by stroke.


Model number
2 DSVH-110 0 - BA 10K -
*1 *2 *3   *4 *5   *6


*1 Number of circuits 2 : Two circuits
*2
 		 Product number (travel)

 DSVH-110 : 100mm
DSVH-610 : 60mm
*3
  		Operating force
 		 0 : Standard
1 : High operating force
*4

 Output law

 BA    : Linear taper + Audio taper
BAP : Linear taper + AP taper (100mm only)
*5
 		 Total resistance
 		 10K : 10kohm
5K   : 5kohm
*6
 		 Frame alteration (Option)
 		 Blank : Normal frame
H         : Polishing the surface of the frame pin area.


    Model Number Search

  • 2DSVH-1100-BA10K
    (Two circuit, 100mm, Standard operating force, Linear taper / Audio taper, Resistance 10kohm)
  • 2DSVH-1100-BA5K
    (Two circuit, 100mm, Standard operating force, Linear taper / Audio taper, Resistance 5kohm)
  • 2DSVH-1100-BAP10K
    (Two circuit, 100mm, Standard operating force, Linear taper / AP taper, Resistance 10kohm)
  • 2DSVH-1100-BAP5K
    (Two circuit, 100mm, Standard operating force, Linear taper / AP taper, Resistance 5kohm)
  • 2DSVH-1101-BA10K
    (Two circuit, 100mm, High operating force, Linear taper / Audio taper, Resistance 10kohm)
  • 2DSVH-1101-BA5K
    (Two circuit, 100mm, High operating force, Linear taper / Audio taper, Resistance 5kohm)
  • 2DSVH-1101-BAP10K
    (Two circuit, 100mm, High operating force, Linear taper / AP taper, Resistance 10kohm)
  • 2DSVH-1101-BAP5K
    (Two circuit, 100mm, High operating force, Linear taper / AP taper, Resistance 5kohm)
  • 2DSVH-6100-BA10K
    (Two circuit, 60mm, Standard operating force, Linear taper / Audio taper, Resistance 10kohm)
  • 2DSVH-6100-BA5K
    (Two circuit, 60mm, Standard operating force, Linear taper / Audio taper, Resistance 5kohm)
  • 2DSVH-6101-BA10K
    (Two circuit, 60mm, High operating force, Linear taper / Audio taper, Resistance 10kohm)
  • 2DSVH-6101-BA5K
    (Two circuit, 60mm, High operating force, Linear taper / Audio taper, Resistance 5kohm)
  (* is the standard model)
   After selecting each specification, the model number for ordering appears at the top.
   (If blank, there is no target model.)

   Travel : 100mm 60mm
   Operating force type : Standard High
   Output law : Linear taper + Audio taper Linear taper + AP taper
   Total resistance value : 10kohm 5kohm
    When reloading the browser, please press Reset once.




Update list

2026.05.04. Added option (Frame alteration).
2026.04.21. First edition
