     MANUAL CONTROL FADER

LSVH Series
Direct print resistor element used (Special surface treatment).
Horizontal style control-bar design (Protection against dust).
PCB Terminal style.


Last update: 2025.04.11. [Specifications] [Note] [Dimensions] [Model-number] [Update list] EU-RoHS


Information
The frame material will be changed from Electrolytic zinc-coated steel sheets to SPCC with cation electrodeposition coating.
(Sequentially carried out from april 21st, 2025.)


Electrical specifications
(initial value)		 LSVH Series
Products LSVH-****-B* 2LSVH-****-B* LSVH-****-* 2LSVH-****-*
Number of circuits
Type of output laws		 1
Linear taper		 2
Linear taper x2		 1
Audio taper		 2
Audio taper x2
Circuit method Potentiometer circuit Ladder circuit
Total resistance (1-3) 10kohm,   5kohm
Total resistance tolerance ±20%
Absolute linearity


 ±5%
 (The travel is divided into 10 sections
 and 11 positions are measured.)		 -
Residual voltage (1-2), (2-3) 20mV or less -
Residual resistance (1-2), (2-3) 50ohm or less -
Attenuation accuracy
[Load: high]		 - 0 - 20dB: ±3.0dB

Matching accuracy - - 0 - 20dB: 3.0dB
Insertion loss - 0.5dB or less
Cut off [15kHz] - 95dB Min.
Voltage proof 1 Min. at AC500V
Insulation resistance 50Mohm or more at DC250V
Max rating 0.2W (Linear taper),  0.1W (Other taper)
Maximum input voltage DC30V or less
Sliding noise level 47mV or less (by JIS C 6443)
Sliding life 100,000 Cycles Min. (18cycles/min, Sliding noise level: Less than 100mV)

Mechanical specifications
(initial value)		 LSVH-1100 Series LSVH-6100 Series
Travel (Stroke) length 100mm ±0.5mm 60mm ±0.5mm
Operating force
 		 0 to 0.1N (Standard)
0.1 to 0.4N (High operating force)
Strength Nut-Attached 100Ncm
Attached parts M3 screw (Length: Panel thickness + 3mm)
Stopper strength 30N
Push-pull strength 30N
Alignment to the center ±0.5mm (State not to pressure control-bar, Measurement position: Mounting surface)

General specifications LSVH Series
Temperature range -10 to +70 degrees C (Operating), -15 to +75 degrees C (Storage)
Relative humidity 90%RH (No condensation)


Please check before use.
* Solder heat resistance: 350deg C max, 5sec max, 2 times. (Manual soldering only)
* Please take care during soldering that the smoke from the solder does not flow inside a fader.
* If the flux sticks to a resistor board, it may cause a trouble with the fader.
* Move to one end in Control-bar on the occasion of knob wearing, and can break into it slowly.
* It is highly recommended that the fault tolerant system is to be set up in the big situation like the live broadcast.
* This product is designed on the assumption of the horizontal use.
* The enough operational testing is highly recommended for the slant or the vertical use to prevent the unexpected operation.
* Only high operating force type with CP-1 or CP2 is applicable for the vertical use.
* Replacing it from other brands tests it enough, and please consider.
* Caution in Ladder circuit(Audio and AP taper) use.

   Important points in using audio curve and log curve of TKD faders >>
* Color may vary slightly due to body material.
* Due to the way the body is processed, there may be some rubbing on the folded parts.
* Please do not strike the fader carriage hard against either end of the fader.


Outline -Travel 100mm

LSVH-110X   (Single circuit) 2LSVH-110X   (Two circuits)


Outline -Travel 60mm
LSVH-610X   (Single circuit) 2LSVH-610X   (Two circuits)


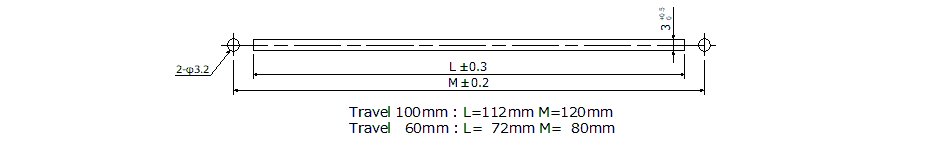

Panel cut out

P.C.Board Mounting hole detail (Viewed from mounting side)

Terminations


Model number
2 LSVH-110 0 - B 10K
*1 *2 *3   *4 *5


*1
 		 Number of circuits
 		 Blank : Single circuit
2         : Two circuits
*2
 		 Product number (travel)
 		 LSVH-110 : 100mm
LSVH-610 : 60mm
*3
 		 Operating force
 		 0 : Standard
1 : High operating force
*4
 		 Output law
 		 B        : Linear taper
Blank : Audio taper
*5
 		 Total resistance
 		 10K : 10kohm
5K   : 5kohm


    Model Number Search

  • LSVH-1100-B10K      *
    (Single circuit, 100mm, Standard operating force, Without dust cover, Linear taper, Resistance 10kohm)
  • LSVH-1100-B5K
    (Single circuit, 100mm, Standard operating force, Without dust cover, Linear taper, Resistance 5kohm)
  • LSVH-1100-10K
    (Single circuit, 100mm, Standard operating force, Without dust cover, Audio taper, Resistance 10kohm)
  • LSVH-1100-5K
    (Single circuit, 100mm, Standard operating force, Without dust cover, Audio taper, Resistance 5kohm)
  • 2LSVH-1100-B10K      *
    (Two circuit, 100mm, Standard operating force, Without dust cover, Linear taper, Resistance 10kohm)
  • 2LSVH-1100-B5K
    (Two circuit, 100mm, Standard operating force, Without dust cover, Linear taper, Resistance 5kohm)
  • 2LSVH-1100-10K
    (Two circuit, 100mm, Standard operating force, Without dust cover, Audio taper, Resistance 10kohm)
  • 2LSVH-1100-5K
    (Two circuit, 100mm, Standard operating force, Without dust cover, Audio taper, Resistance 5kohm)
  • LSVH-1101-B10K
    (Single circuit, 100mm, High operating force, Without dust cover, Linear taper, Resistance 10kohm)
  • LSVH-1101-B5K
    (Single circuit, 100mm, High operating force, Without dust cover, Linear taper, Resistance 5kohm)
  • LSVH-1101-10K
    (Single circuit, 100mm, High operating force, Without dust cover, Audio taper, Resistance 10kohm)
  • LSVH-1101-5K
    (Single circuit, 100mm, High operating force, Without dust cover, Audio taper, Resistance 5kohm)
  • 2LSVH-1101-B10K
    (Two circuit, 100mm, High operating force, Without dust cover, Linear taper, Resistance 10kohm)
  • 2LSVH-1101-B5K
    (Two circuit, 100mm, High operating force, Without dust cover, Linear taper, Resistance 5kohm)
  • 2LSVH-1101-10K
    (Two circuit, 100mm, High operating force, Without dust cover, Audio taper, Resistance 10kohm)
  • 2LSVH-1101-5K
    (Two circuit, 100mm, High operating force, Without dust cover, Audio taper, Resistance 5kohm)
  • LSVH-6100-B10K      *
    (Single circuit, 60mm, Standard operating force, Without dust cover, Linear taper, Resistance 10kohm)
  • LSVH-6100-B5K
    (Single circuit, 60mm, Standard operating force, Without dust cover, Linear taper, Resistance 5kohm)
  • LSVH-6100-10K
    (Single circuit, 60mm, Standard operating force, Without dust cover, Audio taper, Resistance 10kohm)
  • LSVH-6100-5K
    (Single circuit, 60mm, Standard operating force, Without dust cover, Audio taper, Resistance 5kohm)
  • 2LSVH-6100-B10K      *
    (Two circuit, 60mm, Standard operating force, Without dust cover, Linear taper, Resistance 10kohm)
  • 2LSVH-6100-B5K
    (Two circuit, 60mm, Standard operating force, Without dust cover, Linear taper, Resistance 5kohm)
  • 2LSVH-6100-10K
    (Two circuit, 60mm, Standard operating force, Without dust cover, Audio taper, Resistance 10kohm)
  • 2LSVH-6100-5K
    (Two circuit, 60mm, Standard operating force, Without dust cover, Audio taper, Resistance 5kohm)
  • LSVH-6101-B10K
    (Single circuit, 60mm, High operating force, Without dust cover, Linear taper, Resistance 10kohm)
  • LSVH-6101-B5K
    (Single circuit, 60mm, High operating force, Without dust cover, Linear taper, Resistance 5kohm)
  • LSVH-6101-10K
    (Single circuit, 60mm, High operating force, Without dust cover, Audio taper, Resistance 10kohm)
  • LSVH-6101-5K
    (Single circuit, 60mm, High operating force, Without dust cover, Audio taper, Resistance 5kohm)
  • 2LSVH-6101-B10K
    (Two circuit, 60mm, High operating force, Without dust cover, Linear taper, Resistance 10kohm)
  • 2LSVH-6101-B5K
    (Two circuit, 60mm, High operating force, Without dust cover, Linear taper, Resistance 5kohm)
  • 2LSVH-6101-10K
    (Two circuit, 60mm, High operating force, Without dust cover, Audio taper, Resistance 10kohm)
  • 2LSVH-6101-5K
    (Two circuit, 60mm, High operating force, Without dust cover, Audio taper, Resistance 5kohm)
  (* is the standard model)
   After selecting each specification, the model number for ordering appears at the top.
   (If blank, there is no target model.)

   Number of circuits : Single circuit Two circuits
   Travel : 100mm 60mm
   Operating force type : Standard High
   Output law : Linear taper Audio taper
   Total resistance value : 10kohm 5kohm
    When reloading the browser, please press Reset once.




Update list

2025.04.11. Change in frame materials.
2025.01.22. Added operational notes.
2024.03.15. Introduction of model number search.
2023.12.19. Addition of maximum input voltage specification.     Change in maximum ratings.
2023.09.13. Dimensions changed due to a change in the terminal manufacturer. [4.3 → 4.9]
2023.08.04. Added note on body material.
2023.07.20. Slight correction of specification notations.
2023.03.10. Additional 3D data (step format).
2023.03.04. Correction of erroneous listing of terminal length. [4.8 → 4.3]
2022.11.01. First edition
