     ENDLESS WHEEL


Product comes with connectors (see drawing).		 TA-2600E-360 Series
High resolution
Best feeling
Low overshoot
Last update: 2024.10.10. [Specifications] [Note] [Dimensions] [Model-number] [Update list] EU-RoHS


Information
The specifications are under development and are subject to change.


Electrical specifications
(initial value) 		TA-2600E-360 Series
Products TA-2600E-360
Encoder RE12D-100-201-1 [NIDEC CORPORATION]
Output specification 2 phases square wave
Resolution 360 pulses/rotation
Input voltage DC5V ±1%
Connector PHR-4 [J.S.T.MFG.CO.,LTD.]

Mechanical specifications
(initial value) 		TA-2600E-360 Series
Operating range 360 degrees (Endless)
Operating force 0.3 to 0.6N
Push-pull strength 30N

General specifications TA-2600E-360 Series
Temperature range 0 to +50 degrees C (Operating), -15 to +60 degrees C (Storage)
Relative humidity 80%RH (No condensation)


Please check before use.
* Check the manufacturer's data sheet for detailed encoder specifications.
* It is highly recommended that the fault tolerant system is to be set up in the big situation like the live broadcast.
* Replacing it from other brands tests it enough, and please consider.
* Due to tolerances in the drive belt and gears, some units may not produce 360 pulses per rotation.

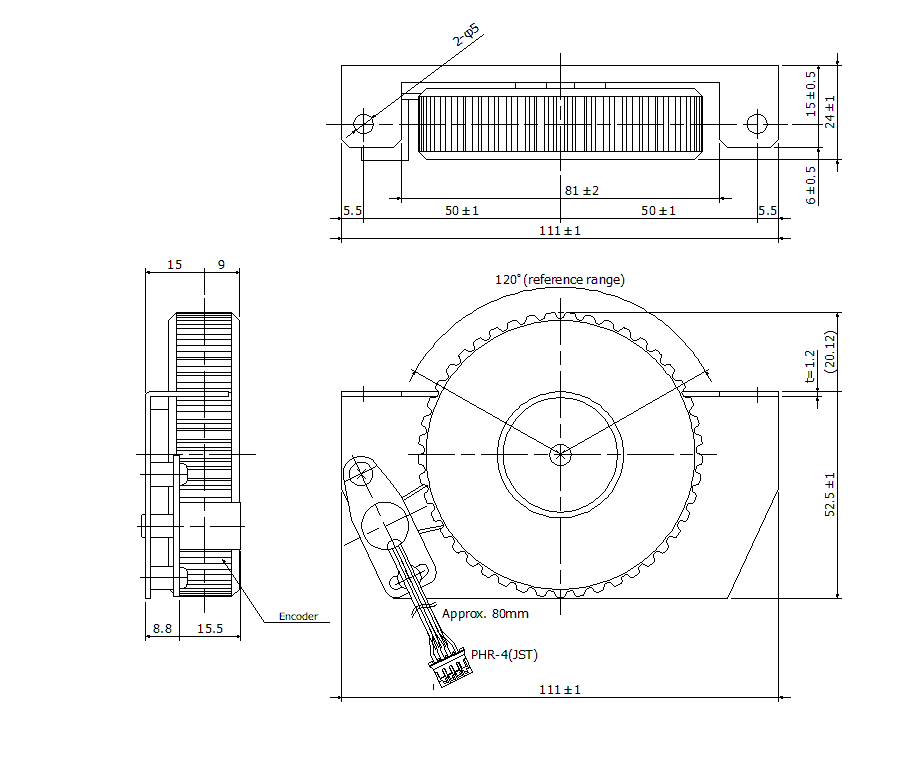

Outline


Terminations



Model number
TA-2600E - 360
*1   *2


*1 Product number TA-2600E : TA-2600E Series
*2 Resolution 360   : 360 pulses/rotation




Update list

2024.10.10. First edition
