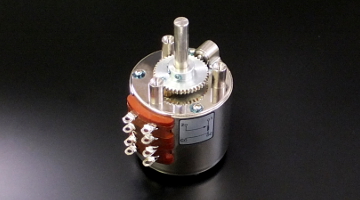

     STEP VARIABLE ATTENUATOR

P65C Series
Au-plated contact materials (Low contact resistance).
41positions (0dB - Cut off).
Used a highly precise resistor.
2 type click torque.


Last update: 2024.03.18. [Specifications] [Note] [Dimensions] [Model-number] [Update list] EU-RoHS


Information



Electrical specifications
(initial value)
P65C Series
Products *P65C*-G-*
Attenuation [Load: High]

BTS-65dB

CCW (Large attenuation & cut off) - CW (Small attenuation)
Degrees (CCW to CW) 320 degrees 312 to 8 degrees (8 degrees step) 0 degrees
Attenuation [dB] Cut-off 65, 58, 53, 48.5, 45, 42, 39.5, ...(2dB step)...,
31.5, ...(1.5dB step)..., 24, ...(1dB step)..., 1
0
Circuit method Potentiometer circuit
Total resistance (1-C) 1kohm, 10kohm, 50kohm, 100kohm, 250kohm
Total resistance tolerance ±5%
Attenuation  accuracy
 [Load: High]
±0.3dB
Max attenuation [Load: High] 65dB ±1.0dB
Cut off [15kHz] 80dB Min.
Matching accuracy
 [Load: High]
0.5dB or less (0dB to 65dB)
Insertion loss 0.3dB or less
Frequency range (DC to Max)

Total resistance 1kohm 10kohm, 50kohm 100kohm 250kohm
Max 100kHz 50kHz 20kHz 15kHz
Voltage proof 1 Min. at AC500V
Insulation resistance 100Mohm or more at DC500V
Input level Max. 0.3W
Rotational life 30,000 Cycles Min. (18cycles/min, Insertion loss: 1dB or less)
* [Load: high]    The output side load should be used with high impedance (20 times or more than the total resistance value).

Mechanical specifications P65C Series
Operating angle 320 degrees ±2 degrees
Step angle 8 degrees
Operating force


P65C   : 0.1 - 1.5 Ncm (Non-stepper type)
P65CS: 8 - 10 Ncm (Stepper type)
P65CLS: 0.5 - 1.5 Ncm (Soft Stepper type)
Strength Nut-Attached 100Ncm
Attached parts M3 screw (Length: Panel thickness + 3 to 5mm)
Stopper strength 50Ncm
Push-pull strength 50N

General specifications P65C Series
Temperature range -10 to +70 degrees C (Operating), -15 to +75 degrees C (Storage)
Relative humidity 90%RH (No condensation)


Please check before use.
* Solder heat resistance: 350deg C max, 5sec max, 2 times. (Manual soldering only)
   The solder please use the thing of the same composition. (Solder for wire lapping sticks to a terminal.)
   Use solder: SN100C (Sn-0.7Cu-0.05Ni-Ge) NIHON SUPERIOR CO.,LTD.
* Special order of the shaft length is possible. Please contact us for details.
* It is highly recommended that the fault tolerant system is to be set up in the big situation like the live broadcast.
* Replacing it from other brands tests it enough, and please consider.
* This product is an attenuator of the types to change resistance.
   Therefore, a switching noise may occur.


Outline


Terminations


Model number
2 P 65 C S - G - 10Kohm
*1 *2 *3 *4 *5   *6   *7


*1

Number of circuits


Blank : Single circuit
2         : 2 circuits specified
4         : 4 circuits specified
*2 Circuit method P : Potentiometer (Unbalanced circuit)
*3 Max attenuation 65 : BTS-65dB
*4 Product type C : TYPE-C Series
*5


Stepper option


Blank : Non-stepper type (Without clicks)
S        : Stepper type (With clicks)
LS      : Soft stepper type (With clicks)
*6 Contact material G : Au-plated
*7



Total resistance



1kohm     : 1kohm
10kohm   : 10kohm
50kohm   : 50kohm
100kohm : 100kohm
250kohm : 250kohm


    Model Number Search

  • P65C-G-1Kohm
    (Single circuit, Without click, Resistance 1kohm)
  • P65CS-G-1Kohm
    (Single circuit, With click, Resistance 1kohm)
  • P65CLS-G-1Kohm
    (Single circuit, With soft click, Resistance 1kohm)
  • P65C-G-5Kohm
    (Single circuit, Without click, Resistance 5kohm)
  • P65CS-G-5Kohm
    (Single circuit, With click, Resistance 5kohm)
  • P65CLS-G-5Kohm
    (Single circuit, With soft click, Resistance 5kohm)
  • P65C-G-10Kohm
    (Single circuit, Without click, Resistance 10kohm)
  • P65CS-G-10Kohm
    (Single circuit, With click, Resistance 10kohm)
  • P65CLS-G-10Kohm
    (Single circuit, With soft click, Resistance 10kohm)
  • P65C-G-50Kohm
    (Single circuit, Without click, Resistance 50kohm)
  • P65CS-G-50Kohm
    (Single circuit, With click, Resistance 50kohm)
  • P65CLS-G-50Kohm
    (Single circuit, With soft click, Resistance 50kohm)
  • P65C-G-100Kohm
    (Single circuit, Without click, Resistance 100kohm)
  • P65CS-G-100Kohm
    (Single circuit, With click, Resistance 100kohm)
  • P65CLS-G-100Kohm
    (Single circuit, With soft click, Resistance 100kohm)
  • P65C-G-250Kohm
    (Single circuit, Without click, Resistance 250kohm)
  • P65CS-G-250Kohm
    (Single circuit, With click, Resistance 250kohm)
  • P65CLS-G-250Kohm
    (Single circuit, With soft click, Resistance 250kohm)
  • 2P65C-G-1Kohm
    (Two circuit, Without click, Resistance 1kohm)
  • 2P65CS-G-1Kohm
    (Two circuit, With click, Resistance 1kohm)
  • 2P65CLS-G-1Kohm
    (Two circuit, With soft click, Resistance 1kohm)
  • 2P65C-G-5Kohm
    (Two circuit, Without click, Resistance 5kohm)
  • 2P65CS-G-5Kohm
    (Two circuit, With click, Resistance 5kohm)
  • 2P65CLS-G-5Kohm
    (Two circuit, With soft click, Resistance 5kohm)
  • 2P65C-G-10Kohm
    (Two circuit, Without click, Resistance 10kohm)
  • 2P65CS-G-10Kohm
    (Two circuit, With click, Resistance 10kohm)
  • 2P65CLS-G-10Kohm
    (Two circuit, With soft click, Resistance 10kohm)
  • 2P65C-G-50Kohm
    (Two circuit, Without click, Resistance 50kohm)
  • 2P65CS-G-50Kohm
    (Two circuit, With click, Resistance 50kohm)
  • 2P65CLS-G-50Kohm
    (Two circuit, With soft click, Resistance 50kohm)
  • 2P65C-G-100Kohm
    (Two circuit, Without click, Resistance 100kohm)
  • 2P65CS-G-100Kohm
    (Two circuit, With click, Resistance 100kohm)
  • 2P65CLS-G-100Kohm
    (Two circuit, With soft click, Resistance 100kohm)
  • 2P65C-G-250Kohm
    (Two circuit, Without click, Resistance 250kohm)
  • 2P65CS-G-250Kohm
    (Two circuit, With click, Resistance 250kohm)
  • 2P65CLS-G-250Kohm
    (Two circuit, With soft click, Resistance 250kohm)
  • 4P65C-G-1Kohm
    (Four circuit, Without click, Resistance 1kohm)
  • 4P65CS-G-1Kohm
    (Four circuit, With click, Resistance 1kohm)
  • 4P65CLS-G-1Kohm
    (Four circuit, With soft click, Resistance 1kohm)
  • 4P65C-G-5Kohm
    (Four circuit, Without click, Resistance 5kohm)
  • 4P65CS-G-5Kohm
    (Four circuit, With click, Resistance 5kohm)
  • 4P65CLS-G-5Kohm
    (Four circuit, With soft click, Resistance 5kohm)
  • 4P65C-G-10Kohm
    (Four circuit, Without click, Resistance 10kohm)
  • 4P65CS-G-10Kohm
    (Four circuit, With click, Resistance 10kohm)
  • 4P65CLS-G-10Kohm
    (Four circuit, With soft click, Resistance 10kohm)
  • 4P65C-G-50Kohm
    (Four circuit, Without click, Resistance 50kohm)
  • 4P65CS-G-50Kohm
    (Four circuit, With click, Resistance 50kohm)
  • 4P65CLS-G-50Kohm
    (Four circuit, With soft click, Resistance 50kohm)
  • 4P65C-G-100Kohm
    (Four circuit, Without click, Resistance 100kohm)
  • 4P65CS-G-100Kohm
    (Four circuit, With click, Resistance 100kohm)
  • 4P65CLS-G-100Kohm
    (Four circuit, With soft click, Resistance 100kohm)
  • 4P65C-G-250Kohm
    (Four circuit, Without click, Resistance 250kohm)
  • 4P65CS-G-250Kohm
    (Four circuit, With click, Resistance 250kohm)
  • 4P65CLS-G-250Kohm
    (Four circuit, With soft click, Resistance 250kohm)
  (* is the standard model)
   After selecting each specification, the model number for ordering appears at the top.
   (If blank, there is no target model.)





Update list

2024.03.18. Introduction of model number search.
2022.11.15. First edition
